16mm x 24mm rigid shaft coupler rated torque 5 N.m, 4mm to 8mm, high-strength aluminum alloy material makes the coupling resistant to corrosion and oxidation, long service life time, 12 months warranty.

Specification

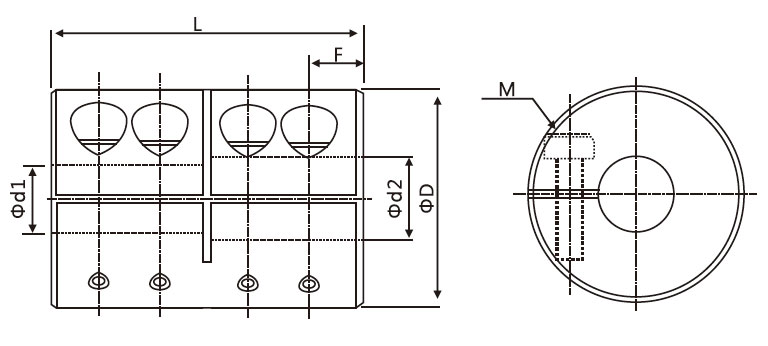

16 x 24mm Rigid Coupling Dimension (unit: mm)

Tips: The difference between flexible coupling and rigid coupling

1. Different characteristics
Flexible couplings are couplings that can compensate for the axial and radial displacements between the connecting shafts, while rigid couplings are couplings that cannot connect the axial and radial displacements between the shafts.
2. Different structure
Compared with the flexible coupling, the rigid coupling has a relatively simple structure, while the flexible coupling has a relatively complex structure. It is more suitable for the situation where the concentricity of the two shafts is not good, and it is especially suitable for the situation with torsional vibration. The elastic structure has the effect of damping vibration. Rigid couplings are relatively suitable for situations where the concentricity of the two shafts is good, and the price is relatively cheap.
3. Different assembly requirements
The shaft concentricity error of the two shafts of the rigid coupling needs to be within 0.05mm, and a more accurate coaxiality error value is required, while the flexible coupling for the coaxiality error of the two shafts can be within 0.1mm, and it is required at the same time. The distance between the drive shaft and the pump end must be 5~10mm.
