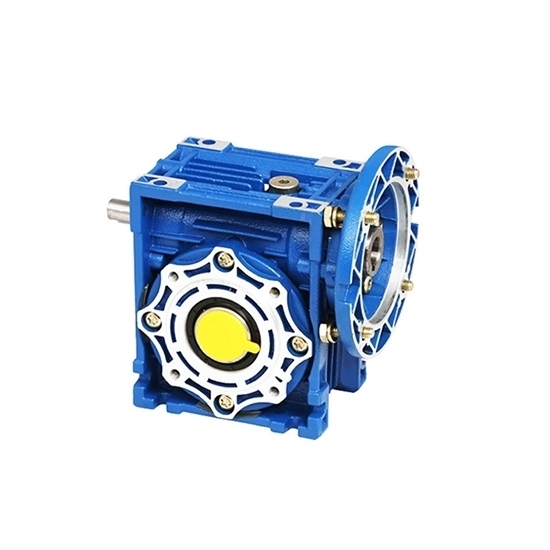

40mm Worm Gearbox, Ratio 5:1 to 100:1, 17 N.m


$463.41
The 40mm D.C. worm gearbox has a large output torque of 17 N.m and a reduction ratio of 5:1, 10:1... 80:1, 100:1. 2087 N.m ma
SKU: CHN-WGR40
Free Shipping Worldwide
Delivery date: 6-12 days

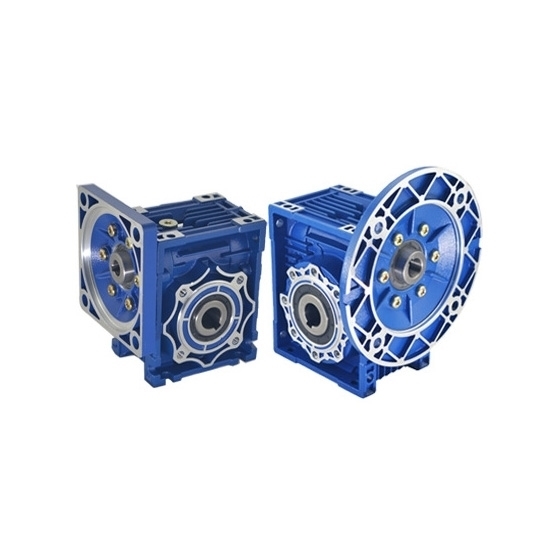

Buy NMRV worm gearbox reducer from ATO online store. 5:1 to 100:1 reduction ratio, 120W rated power. Purchase with flange and one-way output shaft/ bidirectional output shaft, the price is more affordable.

Specification

ModelCHN-NMRV040
Reduction ratio5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
Center distance40mm
Rated torque17 N.m
Maximum torque2087 N.m
Rated power0.12 kW
Rated speed47 rpm
Protection gradeIP65
CertificationCE
ColorBlue
Warranty1 year
Material

Housing: Aluminum alloy

Turbine: 20 Cr

Worm: Tin bronze

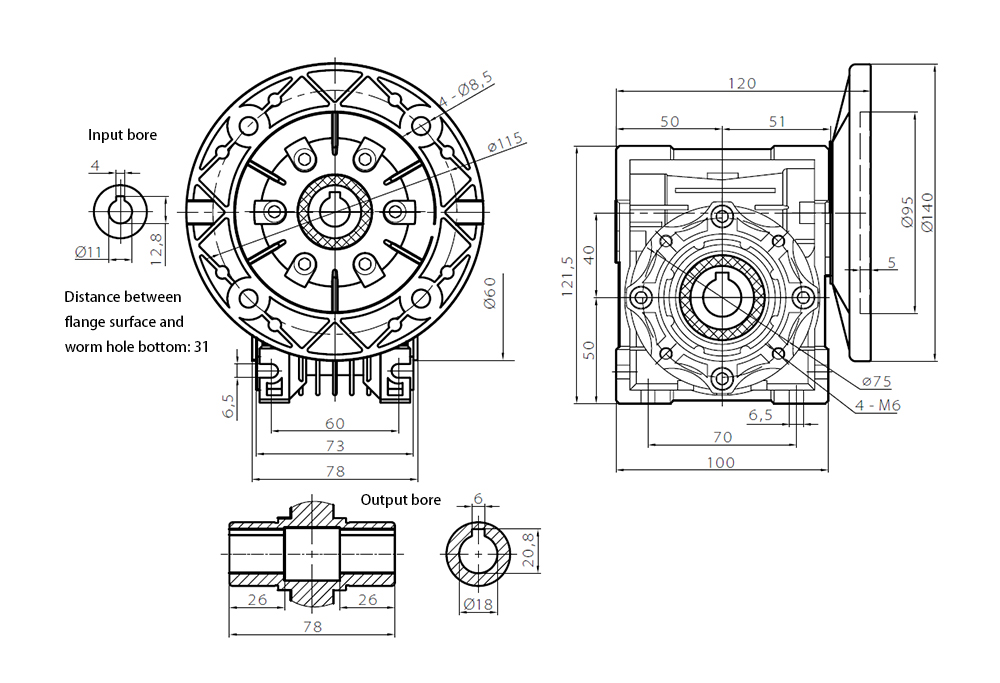

Dimention (Unit: mm)

ATO 40mm worm gear reducer outline dimensional drawing

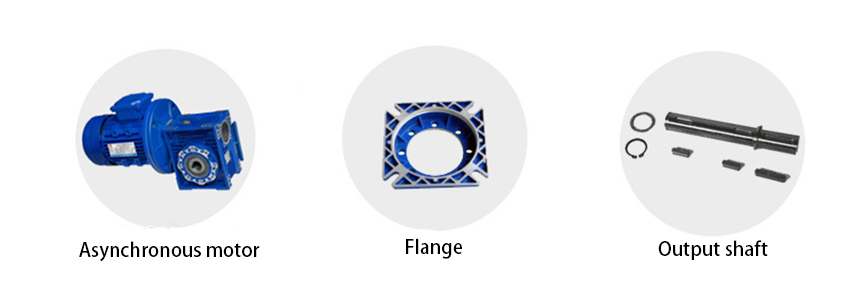

Customizable accessories

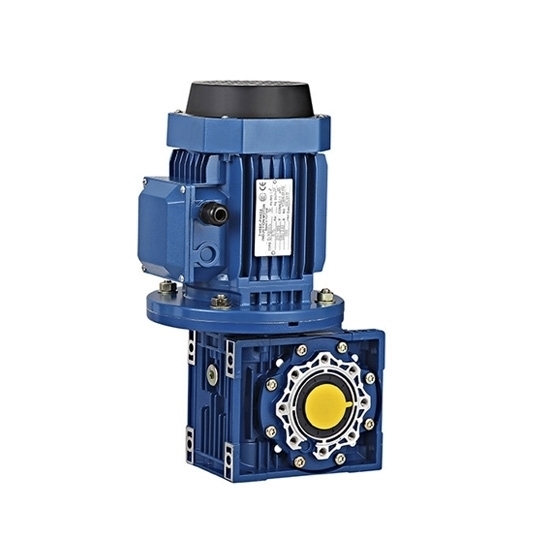

ATO worm gear reducer customizable accessories: Asynchronous motor, flange, output shaft

Tips: How to reduce the noise of worm gearbox?

  1. Use smooth tooth surface. Grinding, rubbing and stone grinding can achieve ideal tooth surface roughness, or warming up in oil for a period of time can also improve the tooth surface roughness, which reduces the noise of the worm gearbox.
  2. Choose gears with good precision. If the pitch error, tooth profile error, tooth groove deviation and tooth rib error are reduced, the noise will be reduced. Grinding the tooth surface can not only improve the accuracy of the gear, but also improve the roughness of the tooth surface. Therefore, the noise of the worm gearbox reducer can be well reduced.
  3. Correct tooth surface contact. The implementation of tooth surface drum processing or cutting end processing to prevent single-piece contact, the noise will naturally be reduced. Proper tooth shape trimming is also effective in reducing noise.
