Tower light is also called indicator light, industrial signal light and industrial warning light. It can be used to transmit the machine status to the operator as visual and acoustical signals, or used in alll kinds of special places as warning signs, or used as communication signal and position indication for municipal administration, field operation, tutelage and rescue.
Specification:
Model | CHN-TORL |
Weight | 1kg |
Operating voltage | DC 6V, DC 12V, DC 24V, AC 110V, AC 220V, AC 380V |
Power | 2-10W |
Light source | LED, bulbs |
Installation method | Magnetic type, bolt fixing type |
Stack light diameter | Φ84mm, Φ86mm, Φ102mm, Φ120mm |
Material of lamp housing | AS |
Material of base | ABS |
Material of retroreflector | Polycarbonate |
Light color | Red, yellow, green, blue, white |
Function | Steady light, flash light, revolving light, buzzer |
Flash frequency | 90-150 times/min |
Revolving speed | 90-130RPM |
Buzzer | Adjustable volume 85-90db within 1 meter |
Operating temperature | -25~60℃ |
Protection class | IP54, IP45 |
Selection table:
Item | Light source | Voltage | Function | Protection class | Stack light diameter | Stack light height |
E5081 | LED | DC 12V, DC 24V, AC 110V, AC 220V | Flash light | IP54 | 84mm | 84mm |
E1101 | Bulbs | DC 12V, DC 24V, AC 110V, AC 220V, AC 380V | Revolving light | IP54 | 102mm | 100mm |
E5101 | LED | DC 12V, DC 24V, AC 110V, AC 220V, AC 380V | Flash light | IP54 | 102mm | 100mm |
E5011 | LED | DC 12V, DC 24V, AC 110V, AC 220V, AC 380V | Flash light | IP54 | 102mm | 100mm |
E5122 | LED | DC 12V, DC 24V, AC 110V, AC 220V, AC 380V | Flash light | IP54 | 120mm | 136mm |
D5088 | LED | DC 6V (dry battery), DC 12V, DC 24V | Flash light | IP45 | 86mm | 90mm |

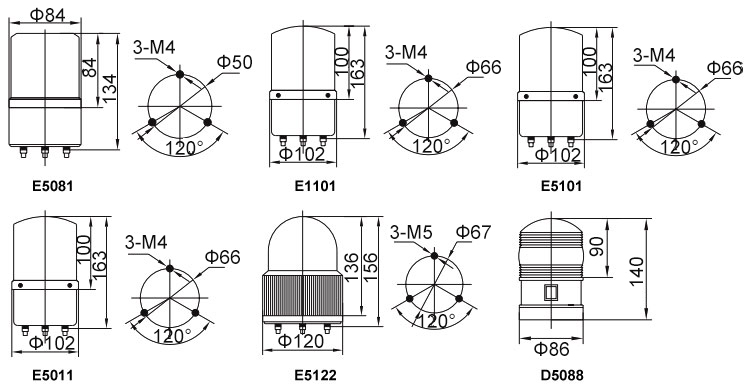

Tower light dimension drawing (unit: mm):

Signal tower light for continuous audible and visual alarm has a single lamp, fixed base, high-brightness LED/bulbs, built-in steady light/flash light/revolving light mode switch, additional buzzer module 90dB, with long life, low calorific value, no maintenance. The warning light has red/yellow/green/blue/white 5 colors to select.
