Home > Test & Measurement > Gas Detectors

Send Inquiry

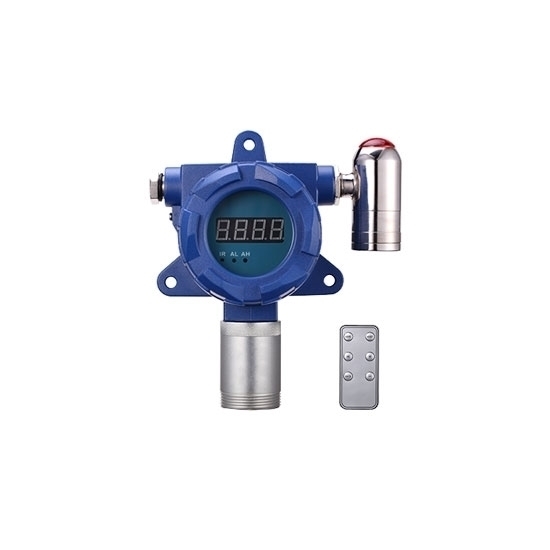

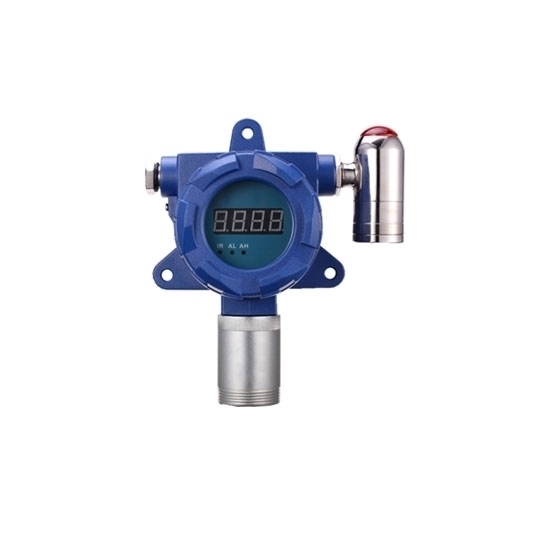

Fixed Ozone (O3) Gas Detector, 0 to 1/5/10/20/50/100 ppm

$849.97

Reliable manufacturer Ozone gas detector for sale. Available measuring range 0-1/5/10/20/50/100 ppm, sound and light alarm by

SKU: CHN-GAS-O3-A

Free Shipping Worldwide

Delivery date: 6-12 days

Overview
Documents

Buy low price gas detector for Ozone detecting and monitoring. Measuring range 0-1/5/10/20/50/100 ppm, optional output signal 4-20mA/ RS485. O₃ gas detector has sound and light alarm, remote control, real time display and 24 hours operating. Fixed installation, convenient use, easy calibration.

Features

Ozone gas detector adopts high precision sensor for accurate gas leak detection.
Ozone gas detector is equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
The O₃ gas detector is compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
Explosion-proof design, fast, relaible and stable.
Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
Two-stage alarm with sound and light, and the alarm point is settable.
The Ozone gas detector has self-calibration function, and three standard keys will be used to realize on-site maintenance.
The O₃ gas detector can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

Model	CHN-GAS-O3-A
Detection Principle	Electrochemistry
Gas	Ozone (O₃)
Range (Optional)	0-1 ppm
	0-5 ppm
	0-10 ppm
	0-20 ppm
	0-50 ppm
	0-100 ppm
Resolution	0.001 ppm, 0.01 ppm, 0.1 ppm (related to the selected range)
Accuracy	≤±3% F.S.
Responce Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional) ^Note	4-20mA, or RS485 (transfer card included); Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	G1/2 male thread explosion-proof flexible pipe
Operating Time	24h
Explosion-proof Grade	Ex d llC T6
Protection Grade	IP65
Certification	CE, ATEX
Working Voltage	12~36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg

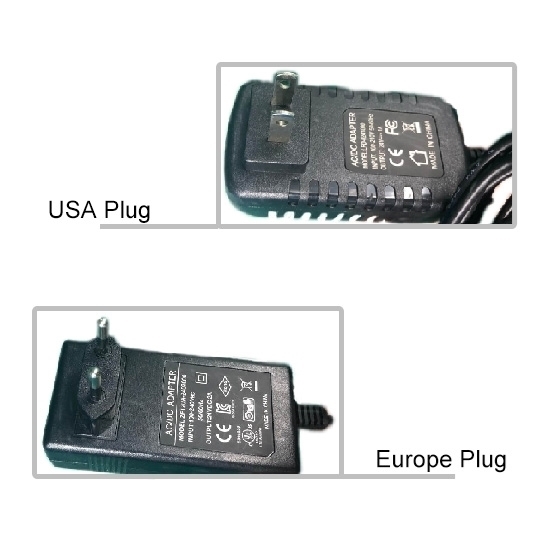

Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 2A (Optional USA plug & Europe plug)

Note: The output signal 4-20mA and RS485 CANNOT be used at the same time.

Fixed Ozone (O₃) Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas	Range (Default)	Range (Optional)	Resolution
Combustible Gas (EX)	0-100% LEL	0-100% LEL	1%LEL
Oxygen (O₂)	0-30% Vol	0-25% Vol	0.01%Vol
Carbon Monoxide (CO)	0-1000 ppm	0-100/500/1000/2000 ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Sulfide (H₂S)	0-100 ppm	0-50/100/500/1000 ppm	0.01ppm/0.1ppm/1ppm
Methane (CH₄)	0-100% LEL	0-100% LEL	1%LEL
Chlorine (Cl₂)	0-10 ppm	0-10/20/50/100 ppm	0.01ppm/0.1ppm
Hydrogen Chloride (HCL)	0-20 ppm	0-10/20/50/100 ppm	0.01ppm
Hydrogen (H₂)	0-1000 ppm	0-1000/2000/5000/10000 ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-100 ppm	0-100/250/500/1000 ppm	0.01ppm/0.1ppm/1ppm
Nitrogen Dioxide (NO₂)	0-20 ppm	0-20/50/100 ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH₂O)	0-10 ppm	0-10/20/-50/100 ppm	0.01ppm/0.1ppm/1ppm
Ozone (O₃)	0-10 ppm	0-1/5/10/20/50/100 ppm	0.001ppm/0.01ppm/0.1ppm
Carbon Dioxide (CO₂)	0-2000 ppm	0-1000/2000/5000/10000/50000 ppm	0.1ppm/1ppm
Sulfur Dioxide (SO₂)	0-20 ppm	0-10/20/100 ppm	0.01ppm/0.1ppm
Ethylene Oxide (ETO)	0-100 ppm	0-20/50/100/500/1000 ppm	0.01ppm/0.1ppm/1ppm
Phosphine (PH₃)	0-10 ppm	0-10/20/50/100/200/500/1000 ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N₂)	0-100% Vol	0-100% Vol	0.01%Vol
Hydrogen Fluoride (HF)	0-10 ppm	0-50 ppm	0.01ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Tips: Common faults of ozone gas detector.

If the ozone gas detector cannot be turned on, it is because the voltage is too low. The solution method is to connect the power supply or charge in time.
Indication value of the ozone gas detector is inaccurate, which is caused by the long-term uncalibrated detector and the sensor overtime. The solution is to replace the sensor.
When there is no O₃ gas, interface of the ozone gas detector displays a value, which is caused by the drift of sensor, so the zero point calibration should be carried out in time.
If the normal detection interface of the ozone gas detector displays full scale, it is caused by a sensor failure. Replace the sensor in time
If the sensor of O₃ gas detector drifts too much and the zero point calibration function is not available, the sensor should be calibrated or replaced in time.
Ozone gas detector does not respond to the detected O₃. The possible cause is a circuit failure or the end of the life of the sensor. The treatment method is timely maintenance.

CCHN Industry

Motor

Motor Controls

Power Supplies

Passive Components

Sensors

Test & Measurement

Transmission & Actuator

Pumps
