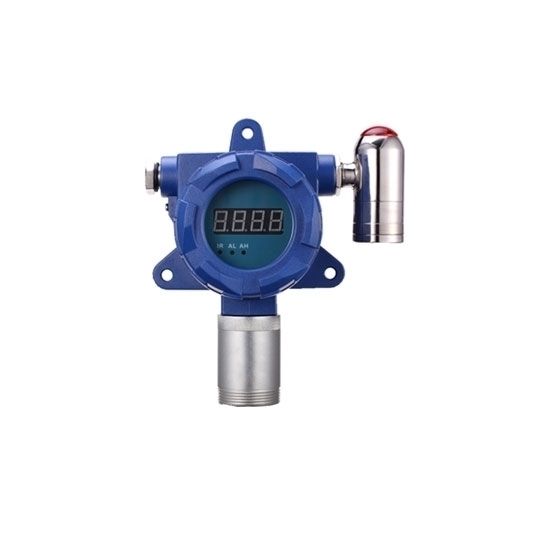

Fixed Nitrogen (N2) Gas Detector, 0 to 100% Vol

Excellent supplier nitrogen gas detector for sale. Working range 0 to 100% Vol, remote control with 4-20mA/ RS485 output signal, supports sound and light alarm. Fixed N₂ gas detector for nitrogen concentration detecting and leak monitor, high quality, low price.

Features

• Nitrogen gas detector adopts high precision sensor for accurate gas leak detection.
• Nitrogen gas detector is equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
• The N₂ gas detector is compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
• Explosion-proof design, fast, relaible and stable.
• Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
• Two-stage alarm with sound and light, and the alarm point is settable.
• The nitrogen gas detector has self-calibration function, and three standard keys will be used to realize on-site maintenance.
• The N₂ gas detector can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

Note: The output signal 4-20mA and RS485 CANNOT be used at the same time.

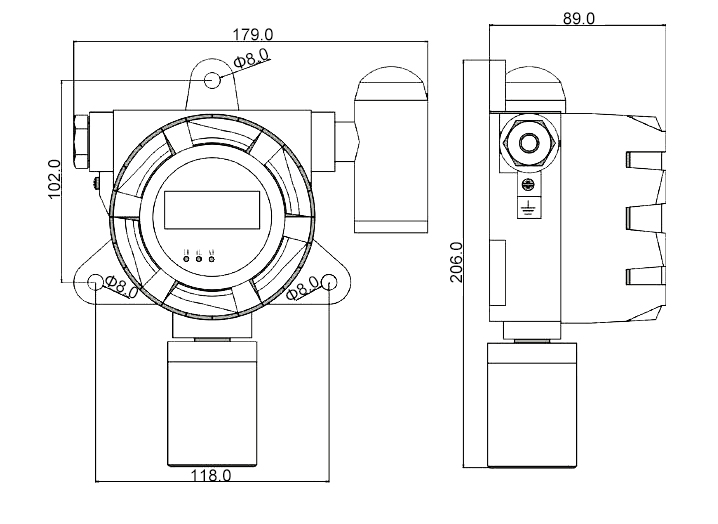

Fixed Nitrogen (N₂) Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Tips: Maintenance of nitrogen gas detector.

1. Regularly calibrate, test and inspect the nitrogen gas detector. In general, the calibration frequency is once a year.
2. As the most important part of nitrogen gas detector, the sensor should avoid exposure to the gas generated by inorganic solvents or organic solvents as much as possible. Especially for electrochemical sensors used to detect toxic and harmful gases, the evaporation or contamination of the electrolyte will cause the signal of the sensor to drop and shorten the service life of the N₂ gas detector.
3. When installing the nitrogen gas detector, please do not put it close to the wall, and reserve enough space around it for daily maintenance and troubleshooting.
4. Ensure that the nitrogen gas detector is in a dry state to avoid affecting its detection accuracy and service life due to the humid environment.
5. The entire outside of the nitrogen gas detector needs to be kept clean. You can wipe the surface with a soft damp cloth. Do not use a damp cloth dripping with water to prevent water droplets from accidentally splashing into the N₂ gas detector.
6. Dust cover of the sensor is for protection. In order to prevent the dust cover from being blocked by dust and affecting the use of sensor, it should be cleaned regularly.
