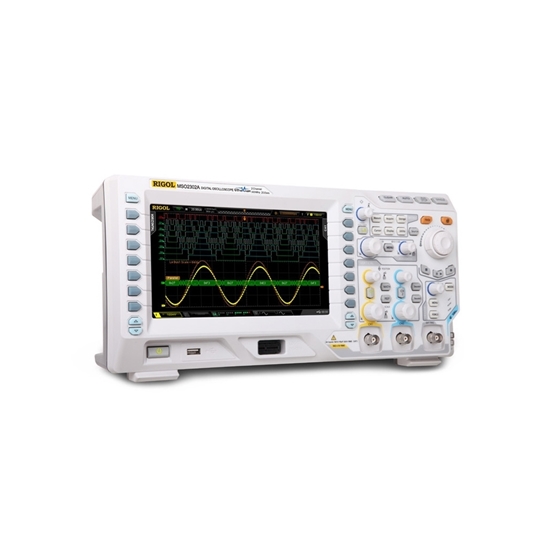

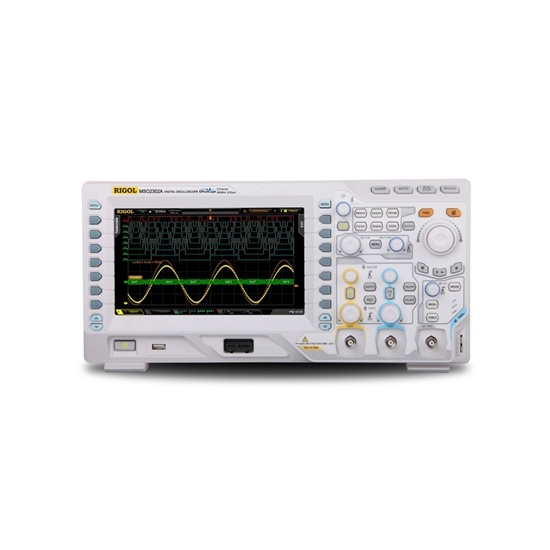

200 MHz Digital Oscilloscope Features

• 200 MHz bandwidth, 2 channels
• Maximum sample rate 2GSa/s
• Vertical scale 500μV/div to 10V/div
• Memory depth up to 14Mpts (56Mpts optional)
• Up to 50,000wfms/s waveform capture rate
• 8" WVGA (800x480) TFT LCD display, 256 intensity grading levels
• Various waveform math functions

Models and Key Specifications

DS/MSO2000A Series Rigol Digital Oscilloscope Specs PDF

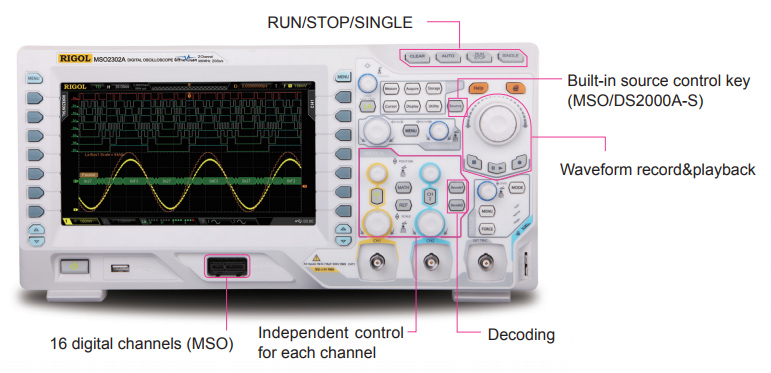

Digital Oscilloscope Detail
Tips: How to choose the channel of oscilloscope?
Channel capacity, including the number of channels and the ability of the channel to suspend the ability to separate the channel.
The number of channels you need depends on your application, and a dual channel oscilloscope is required for the usual economic troubleshooting applications. However, a 4-channel oscilloscope is required to observe the interrelationship of several analog signals. A lot of work in analog and digital two kinds of signal systems engineers can choose mixed signal oscilloscope (MSO), it will be logic analyzer channel count and triggered abilities associated with the comprehensive to have higher resolution time of oscilloscope display in a single instrument. If you measure three-phase electricity, silicon controlled rectifier active device or circuit, there is no absolute zero point between two ends, known as the floating signal, this time from the operating safety and precision, should choose the isolation channel oscilloscope. If the time sequence and phase shift of multi-channel are compared, two channels and above oscilloscope should be selected, and the isolation between channels is more important.
