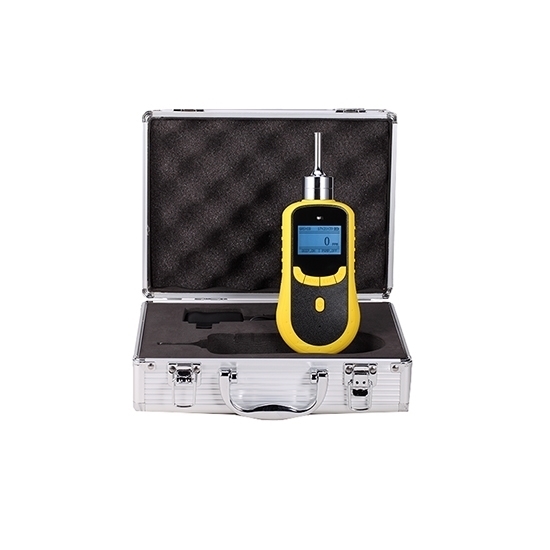

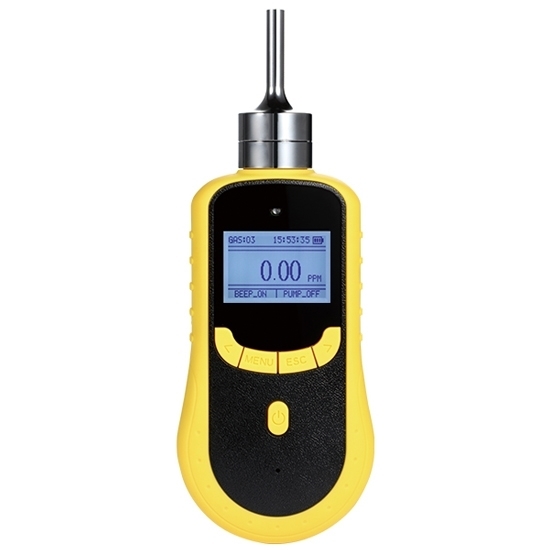

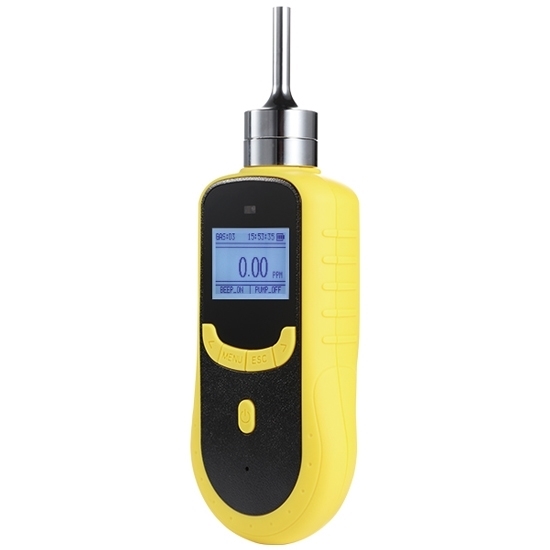

Handheld Carbon Monoxide (CO) Gas Detector, 0 to 500/1000/2000 ppm

Features

• LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
• Support English/Chinese operation, easy to shift.
• Gas concentration unit PPM and mg/m³ can be shift quickly.
• Built-in micro-sampling pump, 10 grades of suction are available.
• Explosion-proof certification

Gas Detector Functions

• With self-calibration and zero calibration functions, makes the detection more accurate and reliable.
• One key to restore factory setting, free from maloperation.
• With temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
• Two-stage alarm with sound and light, and alarm point is settable.
• Rechargeable lithiumpolymer battery with large capacity.
• High-strength special engineering plastic housing, with anti-slip, waterproof, dustproof and explosion-proof.

Specification

Note:
* If you need a CO gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to ATO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

Applications

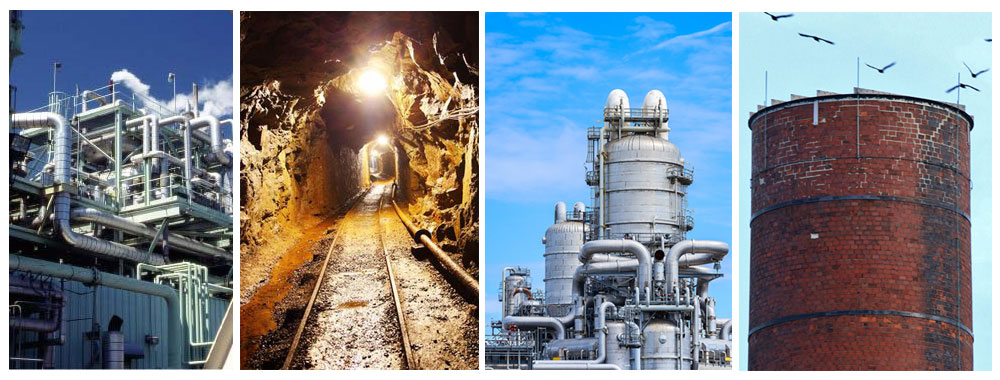

Portable carbon monoxide detector, pump suction style, is used to measure the CO concentration and give an alarms in the confined space like tunnel, sewer, undergroud shaft, mines, cement plant, thermal power plants, agriculture, refinery and other industries, to effectively prevent the carbon monoxide poisoning accidents.

Tips: What are the differences between pump suction and diffusion type gas detector?

A suction style gas detector is equipped with a small air pump. When it works, the pump draws the air sample from the tested region and sends the sample into the instrument for detection. The pump type gas detector features fast detection speed and remote measuring for dangerous areas, so as to maintain personnel safety. Other characteristics are the same with that of diffusion type gas detector.

A diffusion type gas detector is used for detection to sample the air by the free flow of air in detection area. Such a measuring method is easily to be affected by the detected environment, such as ambient temperature and wind speed.
