Basics	Model	CHN-KTC

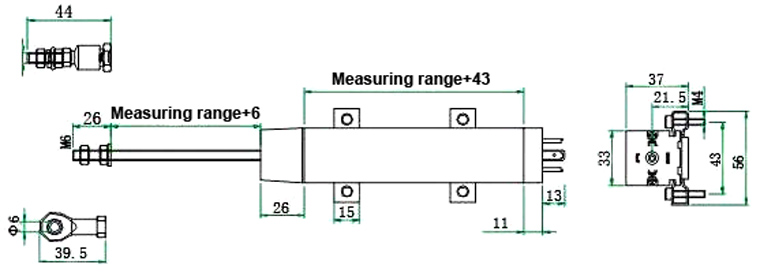

	Size	33*33mm
	Weight	160-1100g
	Measuring range *	50-550mm	600-1000mm	1100-1250mm
Technical parameters	Effective stroke	50-550mm	600-1000mm	1100-1250mm
	Resistance	5.0kΩ	10.0kΩ	20.0kΩ
	Linearity	±0.05%FS
	Repeated accuracy	0.01mm
	Maximum operating speed	10m/s
	Operating current	≤2mA
	Operating voltage	DC 5V	DC 10V	DC 24V
	Output signal *	DC 0-5V	DC 0-10V	DC 0-5V, 0-10V, 4-20mA (optional)
	Operating temperature	-40℃～+135℃
	Protection class	IP67
	Service life	50,000,000 times
