Basics	Model	CHN-LVDT
	Weight	50g-10kg
	Effective stroke *	0-1000mm
Technical parameters	Accuracy *	0.05%, 0.1%, 0.2%, 0.3%, 0.5%, 1%F.S.
	Highest resolution	0.01μm
	Power supply *	DC 10V, 12V, 15V, 24V
	Output signal *	DC 0-10mA, 0-20mA, 4-20mA, DC 0-5V, 0-10V, ±5V, ±10V
	Sensitivity	2.5～50mV/mm
	Sensitivity drift	Zero: 0.01%F.S./℃, full scale: 0.025%F.S./℃
	Load impedance	20KΩ
	Dynamic frequency	0-200Hz
	Protection class	IP67
	Operating temperature	-20℃~70℃ or -40℃~150℃

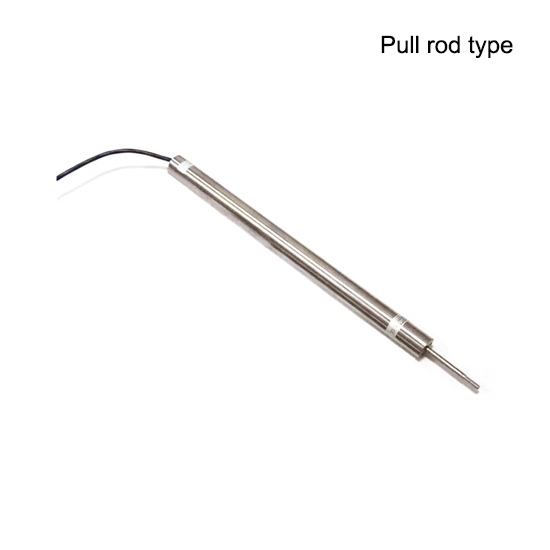

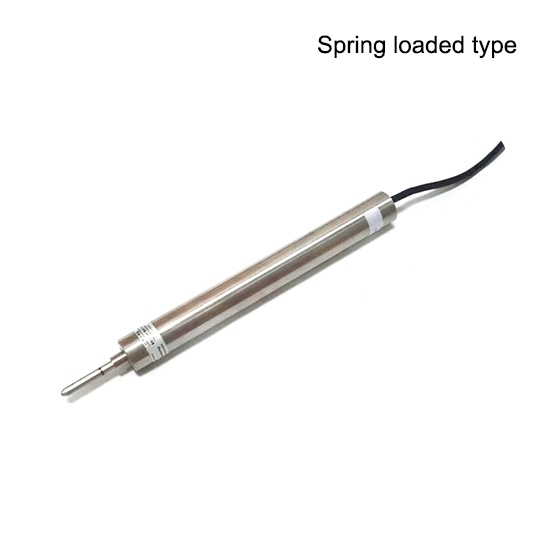

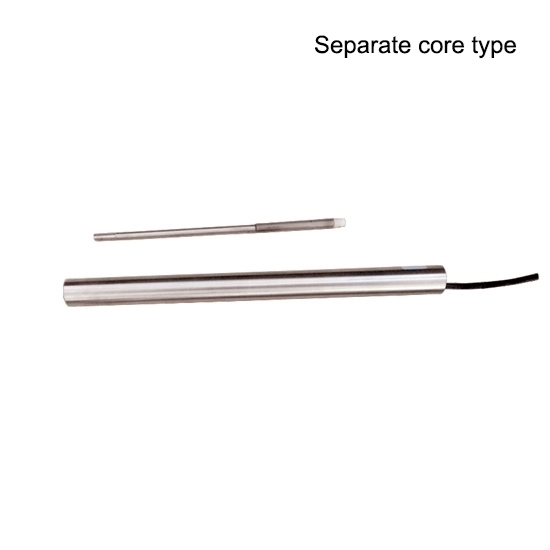

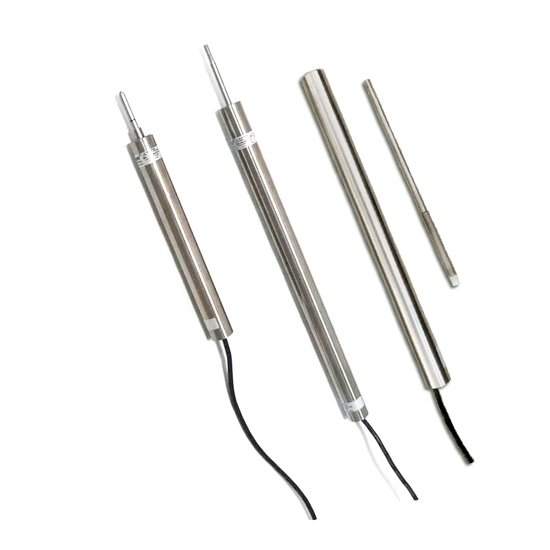

	Type of operation *	Spring loaded type (Measuring range below 200mm), pull rod type, separate core type

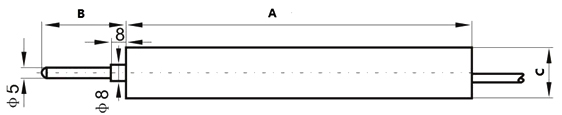

Working stroke (mm)	5	10	25	30	50	100	150	200	300	400	500	600	700	800	1000
Working stroke (mm)	±2.5	±5	±12.5	±15	±25	±50	±75	±100	±150	±200	±250	±300	±350	±400	±500
A (mm)	152	178	198	239	303	353	403	504	703	804	879	987	1029	1093	1326
B (mm)	28mm
C (mm)	20mm or 26mm

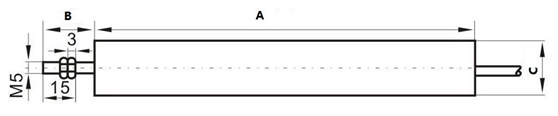

Working stroke (mm)	5	10	25	30	50	100	150	200	300	400	500	600	700	800	1000
Working stroke (mm)	±2.5	±5	±12.5	±15	±25	±50	±75	±100	±150	±200	±250	±300	±350	±400	±500
A (mm)	152	178	198	239	303	353	403	504	703	804	879	987	1029	1093	1326
B (mm)	25mm
C (mm)	20mm or 26mm

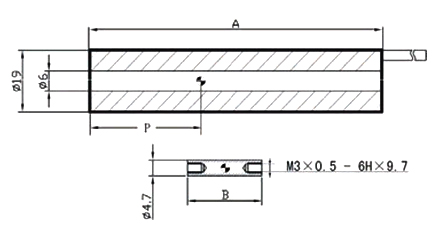

Working stroke (mm)	2.5	5	10	15	25	60	100	250	500
A (mm)	80	90	110	130	170	210	290	500	840
B (mm)	20	30	40	40	70	80	120	150	220
P (mm)	21	26	36	46	66	86	126	231	401
