Hall Effect Current Sensor 50A/100A/200A/500A/800A/1000A

Hall effect current sensor has measuring range of AC/DC 50A/100A/200A/300A/400A/500A/600A/800A/1000A/1200A to 1500A.

Specification:

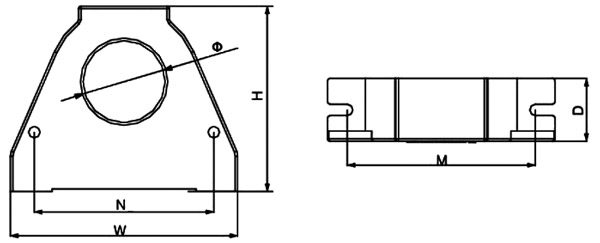

50A to 1500A AC/DC current sensor dimensional diagram:

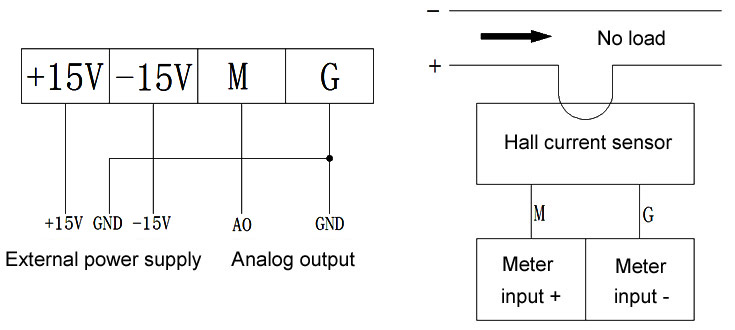

50A to 1500A AC/DC current sensor wiring diagram:

Tips: Selection of current sensors in communication base station
The current sensor can realize the real-time management of the mobile communication base station through the centralized monitoring of the communication power supply. The management personnel can manage the working state of each communication base station in the remote centralized control center, and the technician can also carry on the system maintenance to the base in the first time. In the specific design of a new base, or the need to retrofit the existing base, it should pay attention to the following points when selecting current sensor:

1. First of all, it need to check if the site equipment has been installed, the current sensor has split-core and closed-core type. Split-core current sensor has high accuracy 0.5%FS, while closed-core current sensor has accuracy 1.0%FS. It needs to choose the split-core type in the case of wire cannot be disconnected. It also needs to consider wheather the wire can be disconnected when replacing the current sensors.
2. In addition, when selecting current sensors, it needs to pay attention to the environment temperature and moisture conditions and it needs to clarify the state of the environment to ATO sales.
3. Finally, it is important to note that when choosing to the DC current sensor for monitoring in the battery group, it is necessary to pay attention to whether the reverse current needs to be monitored because there is a charge and discharge problem with the battery.
