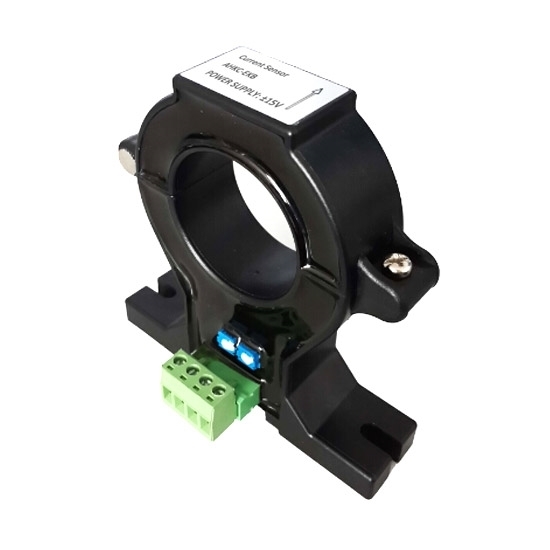

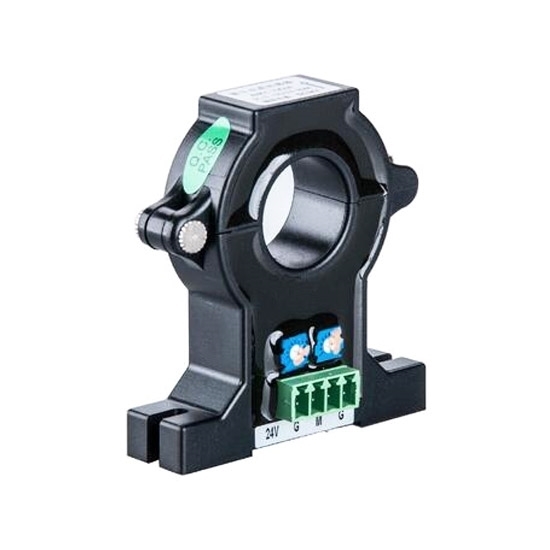

AC Current Sensor 50A/100A/400A/600A/1000A/1200A to 1500A

AC current sensor has measuring range of 50A/100A/200A/300A/400A/600A/800A/1000A/1200A to 1500A.

Specification:

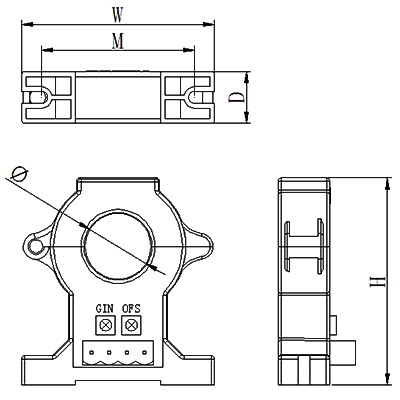

50A to 1500A AC current sensor dimensional diagram:

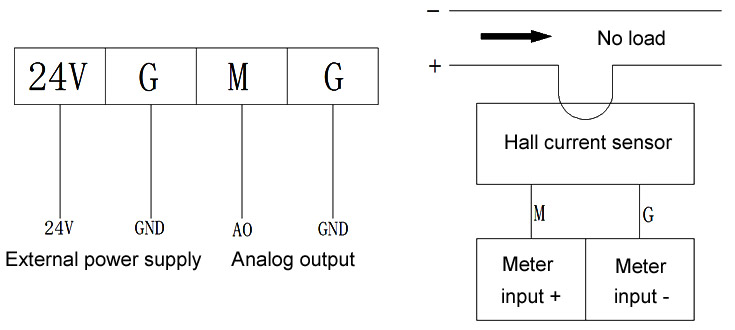

50A to 1500A AC current sensor wiring diagram:

Tips: 6 attentions for using AC current sensor

1. When selecting an AC current sensor, it is important to note whether the perforating dimensions ensures that the wire can pass through the hole of sensor. For example, the hole diameter of 100A ac current sensor can be 20mm, 40mm or 60mm. According to the size of the wire to choose the minimum hole diameter is the most appropriate.
2. When choosing a current sensor, pay attention to whether the application environment in the field has high temperature, low temperature, high humidity, strong earthquake and other special environment.
3. When choosing a current sensor, pay attention to whether the spatial structure is satisfied.
4. When wiring pay attention to the bare conductive part of the terminal, to prevent ESD impact as far as possible, it need professional construction experienced engineer to carry out the wiring operation of the product. The power supply, input, output of each connecting wire must be properly connected, not misplaced or reverse, otherwise it may cause damage to the product.
5. Product installation and environment should be free of conductive dust and corrosion.
6. Severe vibrations or high temperatures may also cause damage to the product, and attention must be paid to the use of the occasion.
