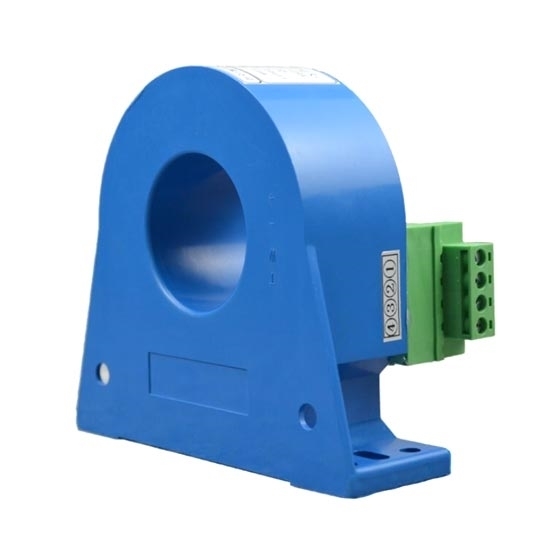

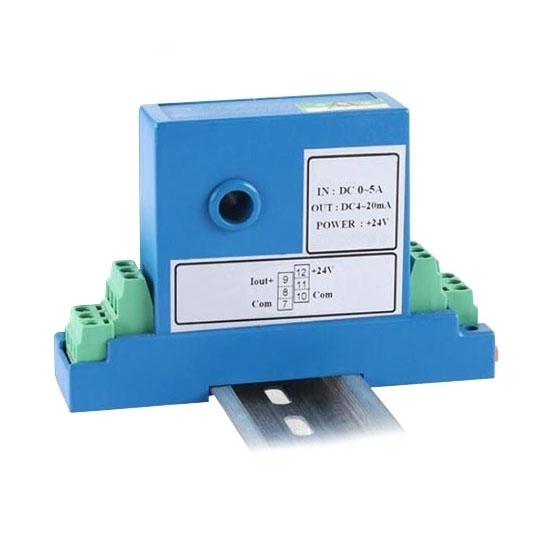

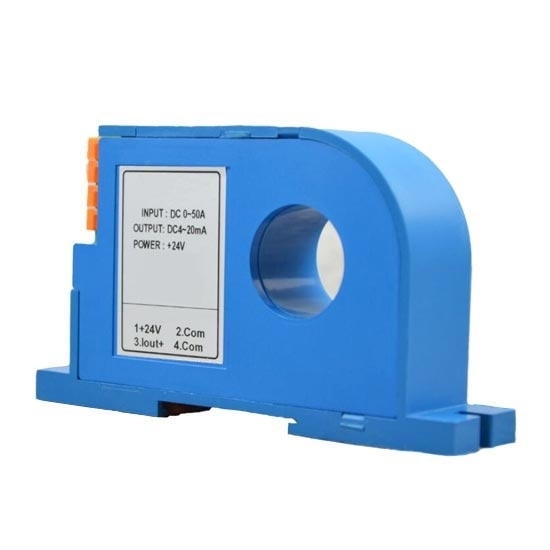

DC Current Sensor 1mA/1A/5A/10A/100A to 800A

DC current sensor has measuring range of 1mA/100mA/1A/2A/5A/10A/50A/100A/200A to 800A.

Specification:

Note: ATO can customize DC bidirectional current sensor with maximum measuring range of -50A~0~50A. For example, the measuring range of input current is -50A ~ 0 ~ +50A, and the output signal is 4-20mA. Then the output signal 4-12mA corresponds to -50A~0, and the output signal 12-20mA corresponds to 0~+50A. And so on for other output signal modes. If you have any questions, please feel free to contact us.

Hole diameter and corresponding current for reference:

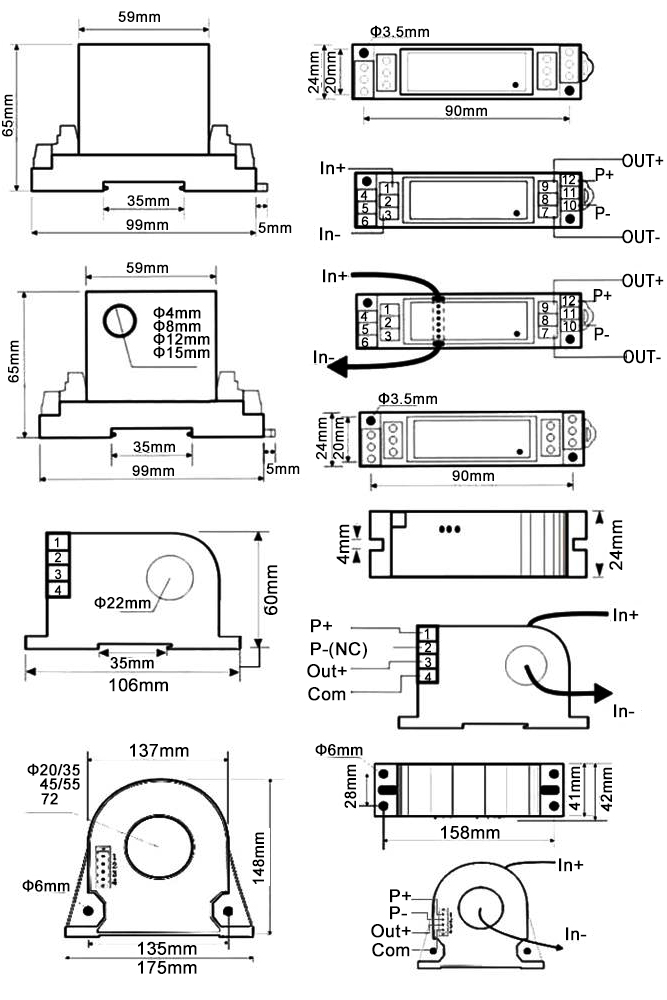

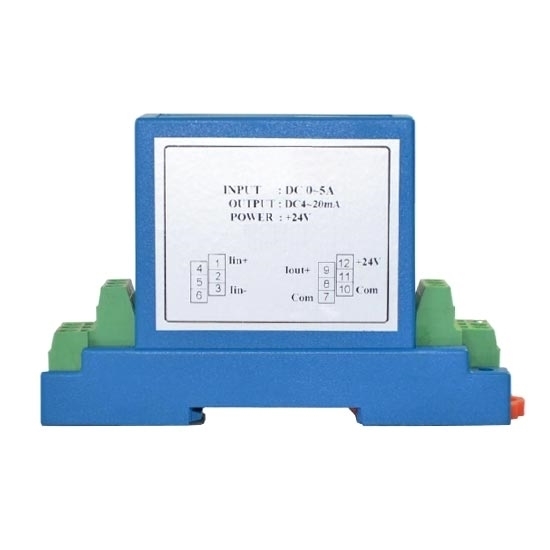

Dimension and wiring diagram:

Tips: Current sensor applications

1. Detect the current harmonics of the electronic equipment absorbing from power grid.
2. Detect the slight current waveform distortion in the PWM circuit.
3. In spot welder and pulse plating equipment, the Hall effect current sensor can be used to detect the current waveform and the peak voltmeter can be used to test the output voltage of sensor, thus calculating the measured peak current.
4. Hall effect current sensor has noninductive characteristic and response quickly. It's most suitable for detecting current signals in overcurrent or short-circuit protection circuits of the electronic equipment, so as to realize a fast protection.
5. Hall effect current sensor still has the electrical isolation in DC detection, which expands its application range.
6. In the electronic equipment that outputs current, Hall effect current sensor can also be used to obtain DC current signal, so as to realize current feedback, interception control, constant-current regulation, and overcurrent and short-circuit protection at the DC side.
