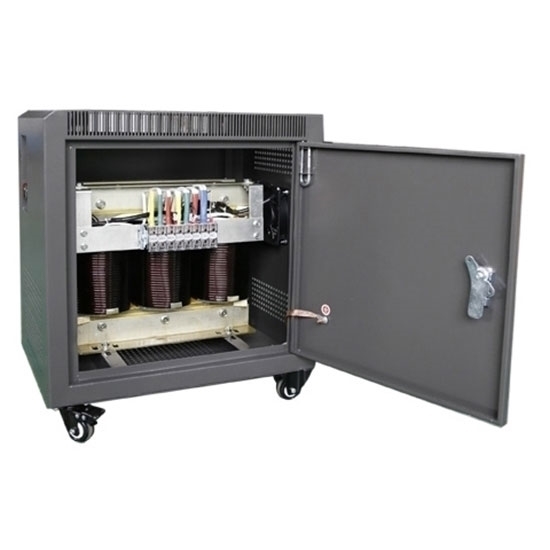

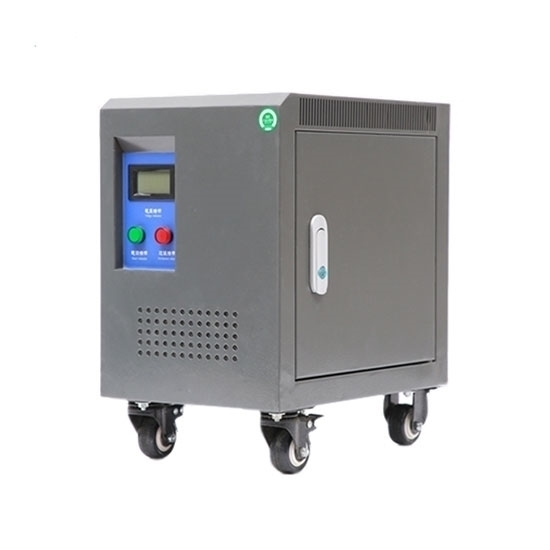

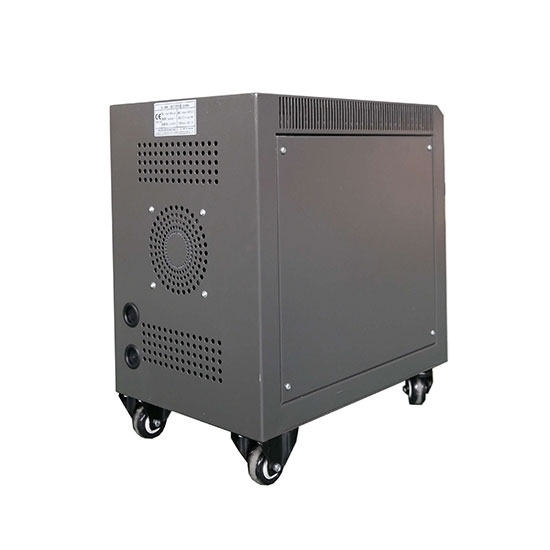

Single phase to split phase transformer rated value 30kVA, convert input voltage 480V to output voltage 120V/240V, winding material can select aluminum or copper wire, enclosure protection grade IP20.
30 kVA Single Phase to Split Phase Transformer Specifications
Model | CHN-DGS30kVA |
Phase | Single phase to split phase |
Capacity | 30 kVA |
Primary Voltage | 1 Phase / 2 phase 110, 120, 208, 220, 230, 240, 380, 415, 440, 460, 480, |
Secondary Voltage | 120V/240V AC(L1, L2, N, L+L=240V, L+N=120V) |
Frequency | 50/60Hz |
Winding Material | Aluminum/Copper wire (Optional) |
Work Efficiency | ≥95% |
Insulation Resistance | ≥50 MΩ |
Electrical Strength | 2000V AC/1 min |
Noise | ≤35dB (1 meter) |
Insulation Grade | Grade B (130℃), Grade F (155℃), Grade H (180℃) |
Cooling Method | Natural or air cooling |
Overload Capacity | Allow more than 1.2 times rated load to work for up to 1 hour |
Induced Overvoltage Withstand Test | 125Hz/800V/min |
Transformation Ratio | <3% |
Air Carrying Current | <6% |
Impedance Voltage | About 6% |
Total Losses | 10% |
Certification | CE, ISO |
Temperature | -15℃~+45℃ |
Humidity | ≤90%RH, without condensation |
Altitude | <2000m, non corrosive gas and conductive dust |
Enclosure Protection Grade | IP20 |
Warranty | 12 months |
Weight of Aluminium Wire Transformer | Open type: 240kg Protected type: 278kg |
Weight of Copper Wire Transformer | Open type: 232kg Protected type: 275kg |

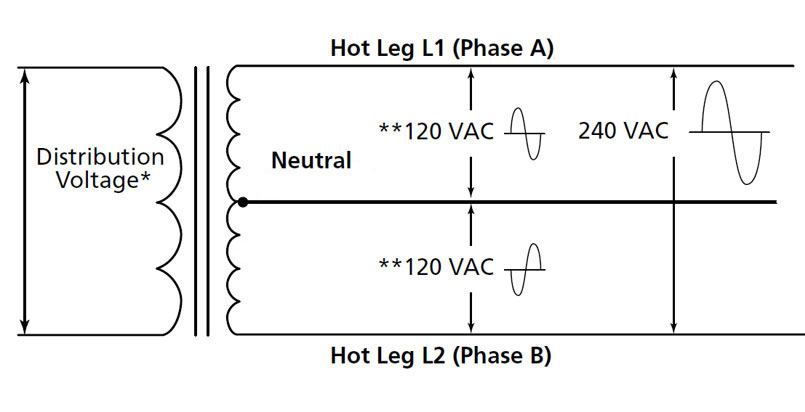

30 kVA Single Phase to Split Phase Transformer Schematic Diagram

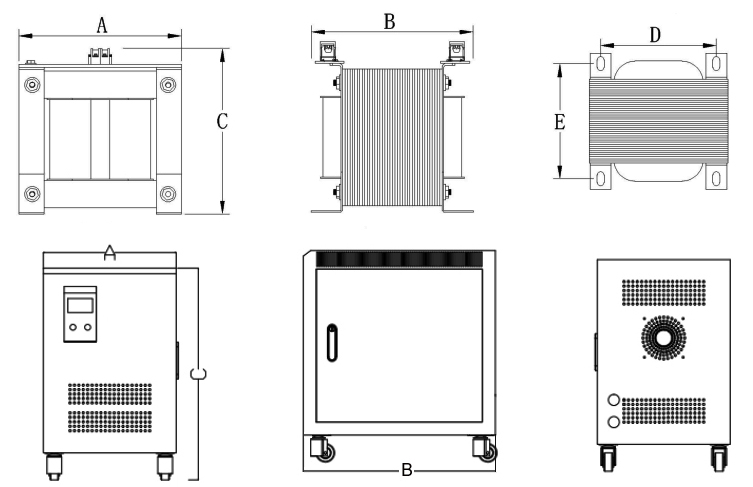

30 kVA Single Phase to Split Transformer Dimension (Unit: mm)

Aluminium Wire Transformer Size | Copper Wire Transformer Size |
Open type: a*b*c=410*400*580mm | Open type: a*b*c=370*360*520mm |
Mouting size: D*E=210*250mm (aperture: 20*10mm) | Mouting size: 250*245mm (aperture: 20*10mm) |
Protected type: A*B*C=455*660*710mm | Protected type: A*B*C=455*660*710mm |
Tips: What is no-load operation of a transformer?
The no-load operation of the transformer refers to the working state in which the primary winding of the transformer is connected to the power supply and the secondary winding is open. At this time, the current in the primary winding is called the no-load current of the transformer. No-load current generates a no-load magnetic field. Under the action of the main magnetic field (ie, the magnetic field that cross-links the primary and secondary windings at the same time), an electromotive force is induced in the primary and secondary windings. When the transformer is running at no load, although the secondary side has no power output, the primary side still draws part of the active power from the grid to compensate for the hysteresis loss and eddy current loss caused by the magnetic flux saturation in the iron core | . The size of the hysteresis loss depends on the frequency of the power supply and the area of the hysteresis loop of the core material; the eddy current loss is proportional to the maximum magnetic flux density and the square of the frequency. In addition, there is copper loss caused by no-load current. For transformers of different capacities, the size of no-load current and no-load loss are different.
Transformer capacity 30kVA, single phase to split phase, step down 480V primary voltage to 120V/240V secondary voltage, overload capacity allows more than 1.2 times the rated load to work for up to 1 hour, making the single-phase transformer harmless.
