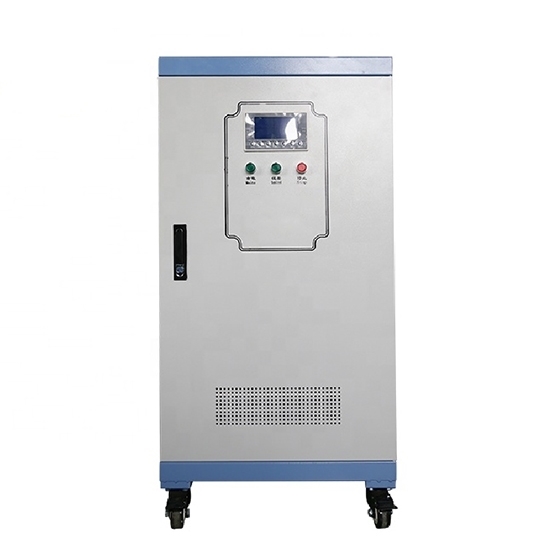

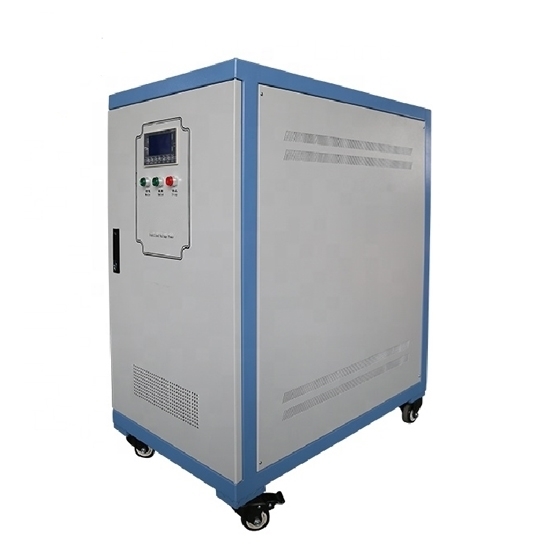

50 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

50 kVA Voltage Stabilizer Features

• Three phase 4-line 175V-265V (phase voltage) 304V-456V AC (line voltage) of wide input voltage range, 380V output
• High technology with computer programming control
• The high accuracy of the output voltage (output voltage can be customized)
• Perfect protection function: Over/ low voltage protection, over heat/ load protection, short circuit protection
• High efficiency: More than 95%

50 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securties and other occasions where all needs normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.

50 kVA Voltage Stabilizer Specifications

Model Number		CHN-SBW/ZBW-50K
Capacity		50 kVA (The power capacity of voltage stabilizer needs to be 1.5~2 times greater than the load power)
		User Manual for 30kVA-3000kVA 3-phase voltage stabilizer
Phase		3 Phase 4-line
Input Voltage Range		±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage		3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy		±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency		50Hz/60Hz
Current Type		AC
Efficiency		≥95%
Response Time		≤1.5S
Ambient Temperature		-15°C~+40°C
Cooling Method		Naturally air cooled
Insulation Resistance		≥5MΩ
Electricalintensity		Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity		Overload current (%)		Duration (min)
		20		≤60
		40		≤15
		60		≤5
Waveform Distortion		Non-lack fidelity waveform
Protection		Over-voltage, over-current, feed phases
Protection Grade		IP 24
Warranty		24 months
Certificate		ISO9001:2008, CE
Weight		350 Kg
Package Size		800x620x1350 mm

3 Phase Voltage Stabilizer Schematic Diagram

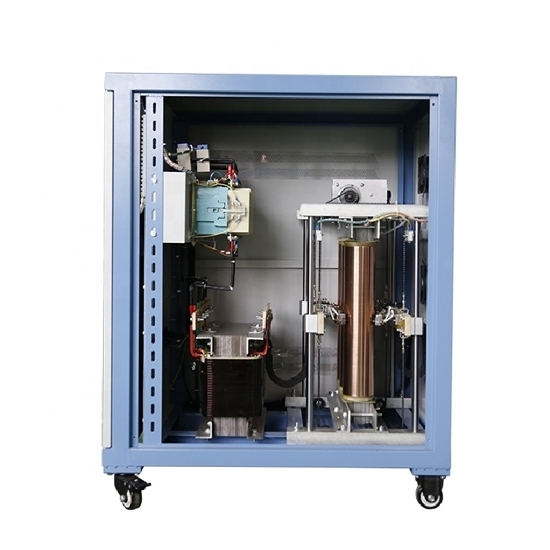

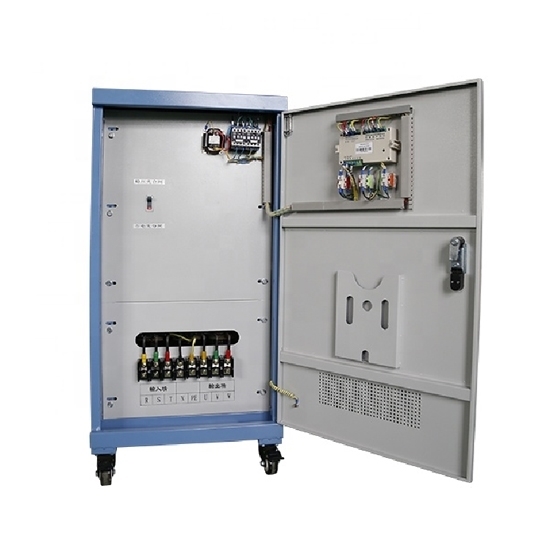

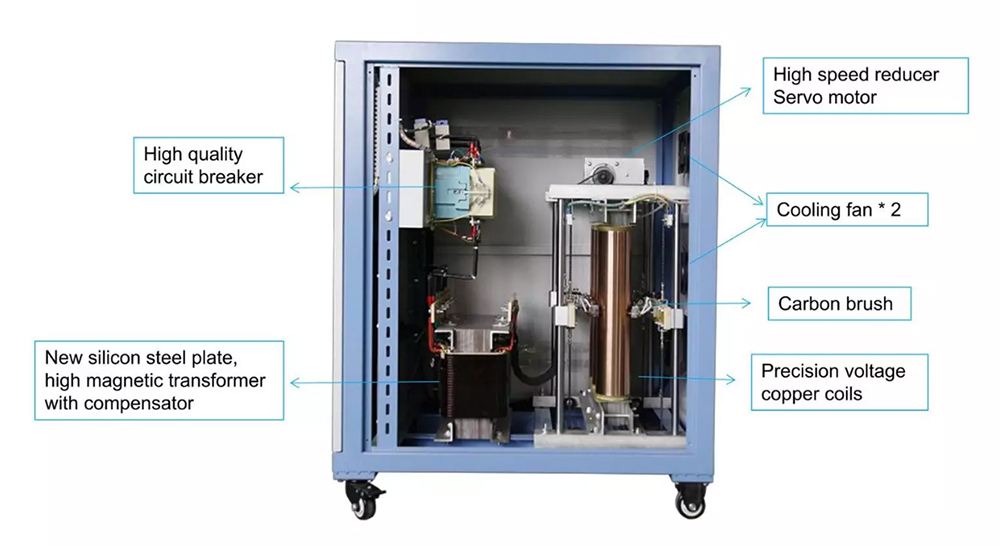

Industrial Voltage Stabilizer Inner Detail

Tips: Why is the voltage of a 50kVA industrial voltage stabilizer unstable?

1. The input voltage is too high or too low. The voltage range of 50kVA three-phase instrial voltage stabilizer is 304V-456V. If the input voltage exceeds the regulated range or is very low, the automatic protection system of the regulated power supply will start, thus causing the output voltage to be unstable or stop working directly.
2. The input voltage is unbalanced in three phases, that is, the voltage of one of the three phases of the stabilizer is unstable, which will also lead to the output voltage of the stabilizer is unstable.
