10 amp 2 pole Miniature Circuit Breaker

Circuit Breaker Information

• Rated Current: 10 amp
• Rated Voltage: 230/400V
• Number of pole: 2 poles
• 6 kA short circuit breaking capacity
• Compliance with IEC standard
• C curve trip characteristic gives you the ability to configure the exact protection scheme you required.

Technical Data

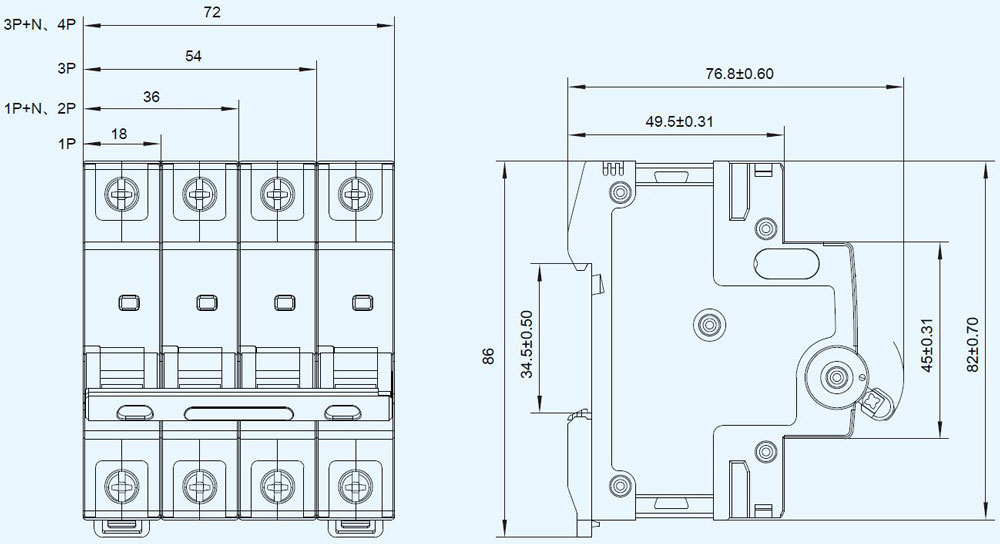

Circuit Breaker Dimensions (Unit: mm)

Tips: Difference and contrast between the circuit breaker and the fuses
1. The fuses

• Advantages
  Good selectivity, good current limiting characteristics and high breaking capacity; small relative size, cheap price.
• Disadvantages
  The fuse must be exchanged after fault fusing.
  It only has vary single protective function, and cannot realize remote control, which is possible through combining with the electric knife switch and switch.

2. The circuit breakers

• Advantages
  When it breaks because of fault, it can be reset manually, instead of changing the component, except the condition that the big short-circuit current is cut off and requires to be repaired.
  It has two segments of protective functions: the long-time delay release with the inverse-time characteristics and instantaneous current release, which are used as overload and short-circuit protections respectively. Some breakers has more protective functions with high sensitivity and easy regulating parameters.
• Disadvantages
  Tthe upper and lower non-selective circuit breakers are difficult to realize the selective cutoff. When the fault current is relatively high, it is easily to disconnect the upper and lower circuit breakers all of a sudden.
  Tthe price is a little high.
  Tthe breaking capacities of some circuit breakers are low.
