6 amp 2 pole Miniature Circuit Breaker

Compact mini circuit breaker provides overload and short circuit protection for conductors, DIN rail mounting and safe in use.

Circuit Breaker Information

• Rated Current: 6 amp
• Rated Voltage: 230/400V AC, 50Hz
• Number of pole: 2 poles
• 6 kA short circuit breaking capacity
• Compliance with IEC standard
• C curve trip characteristic
• Breakers mounting on standard 35 mm DIN rail

Technical Data

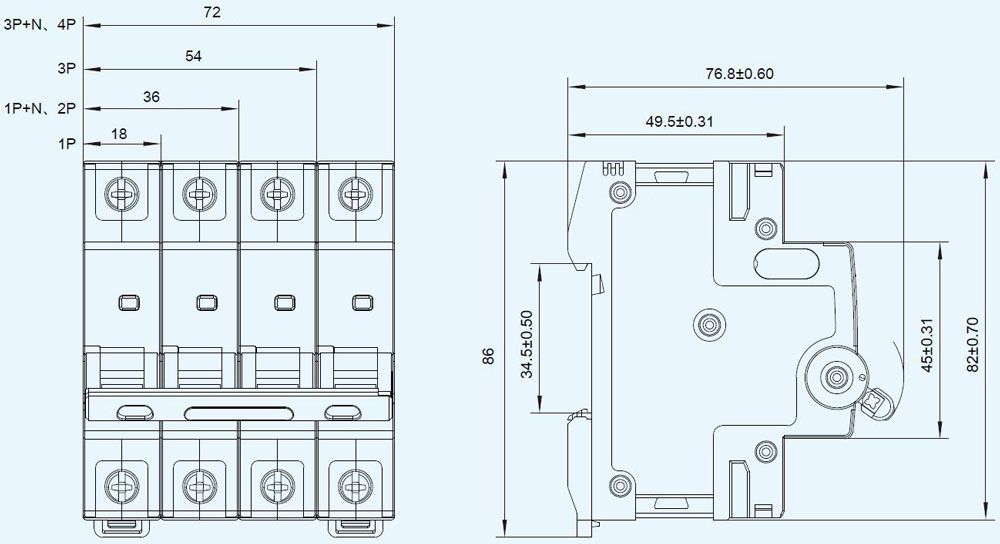

Circuit Breaker Dimensions (Unit: mm)

Tips: Working conditions of miniature circuit breakers

• The upper limit of ambient temperature should not exceed +40℃, the lower limit should not be lower than -5℃, and the average temperature of 24h should not exceed +35℃.
• The altitude of the installation site does not exceed 2000m.
• The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40℃. Higher relative humidity can be allowed at a lower temperature, for example, up to 90% at +20℃. Appropriate measures should be taken for condensation.
• The external magnetic field of the installation site should not exceed 5 times the geomagnetic field in any direction.
• The miniature circuit breaker is generally installed vertically, with a tolerance of 2° in any direction.
• There should be no significant impact and vibration at the installation site.
