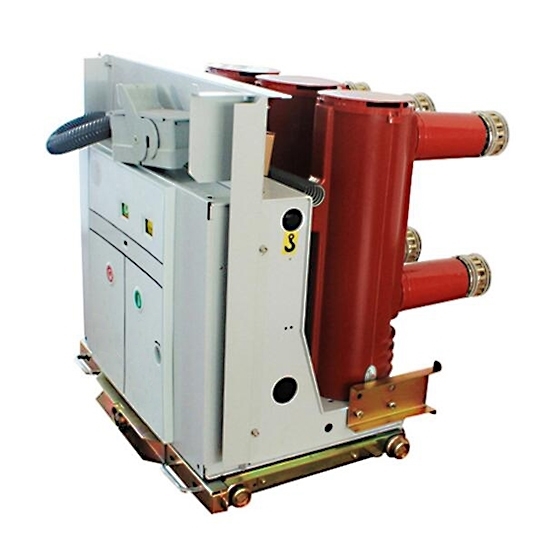

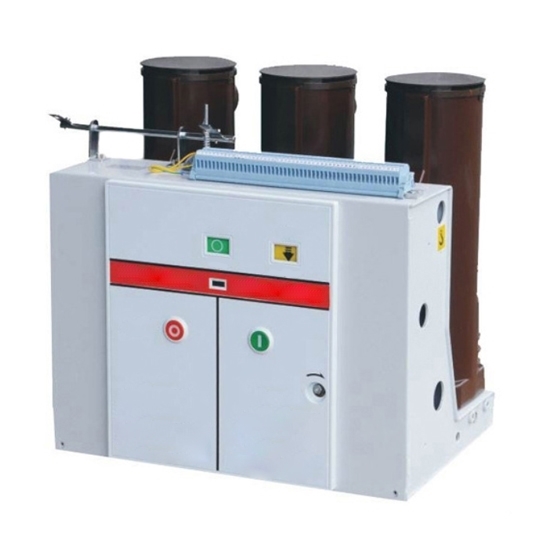

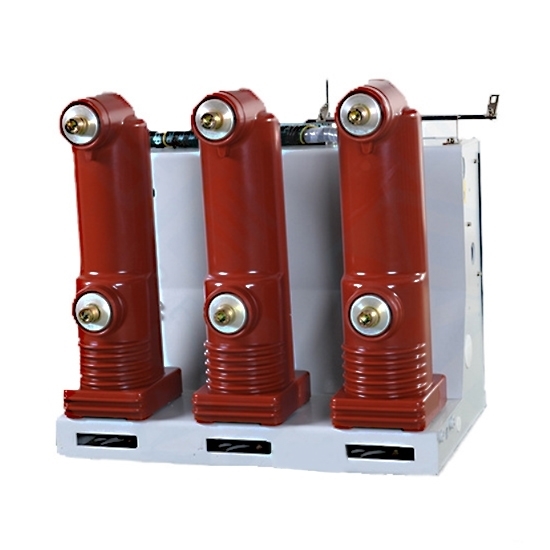

40kV Vacuum Circuit Breaker, 1250A, 50Hz

VCB circuit breaker with 40kv for sale. The entire structure of vacuum circuit breaker presents the integrated installation off-switch body and operating mechanism. VCB breaker price is affordable and suit for engineering programs.

Features:

• 40.5kV vacuum circuit breaker with Ideal contact material and shape, ensuring low current carrying value and stable contact resistance.
• Integrated design of main conductive circuit made of compound isolation material and operating mechanism.
• Few components and parts, compact and logical structure, assuring more reliable and safer operation.
• VCB breaker adopts the composite insulation structure, with high insulation level,no pollution or explosion danger.
• Compact design enables the breaker to be installed within almost all switchgears.
• Superior cost performance, vacuum circuit breaker is the ideal choice for engineering programs.

Specification: (Parameters can be customized)

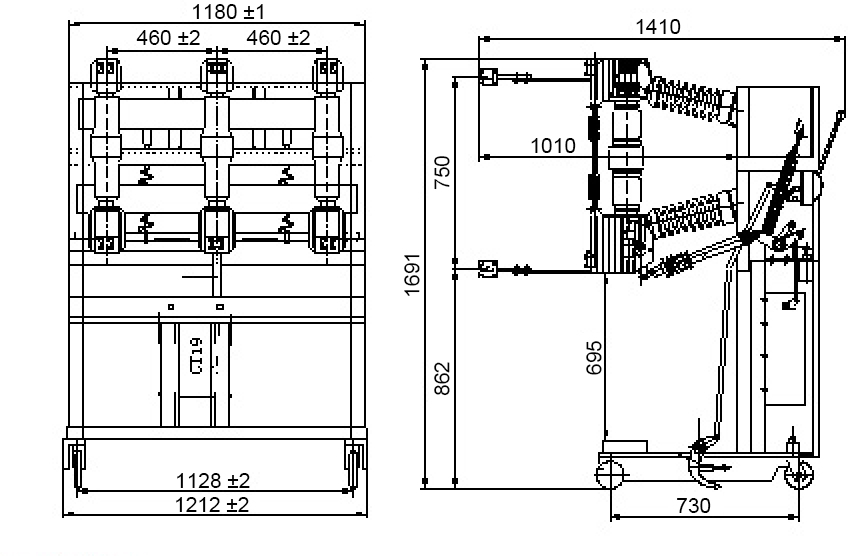

Dimensions: (Unit: mm)

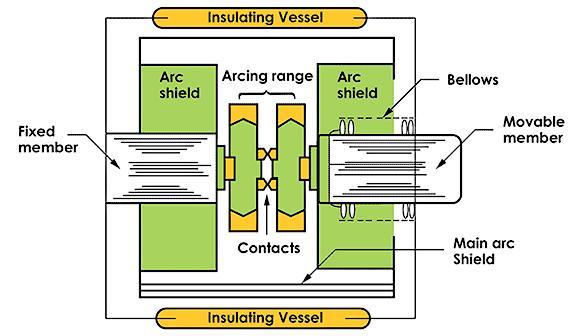

Schematic Diagram:

Tips: What Information Should You Pay Attention to When Ordering？

1. Vacuurn circuit breaker's name, model, main technical data and order quantity.
2. Vacuurn circuit breaker's rated voltage and rated current and rated short-circuit breaking current, vacuurn circuit breaker's operation mechanism mode and control voltage.
3. Spare parts narne and quantity, rated voltage of tripping and closing coil; Other questions or special requirements please contact with manufacturer.
