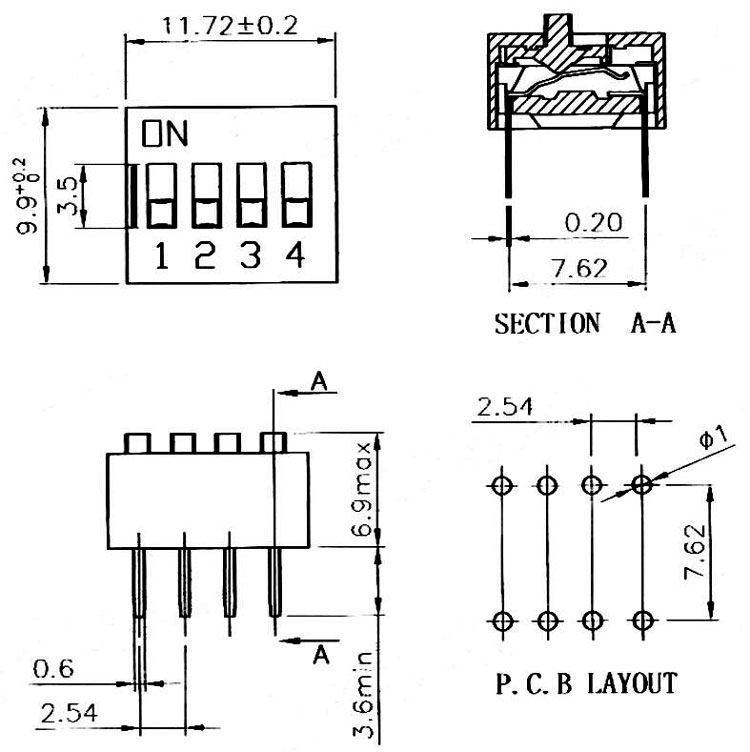

Model		CHN-DIP-4P
Spacing		2.54mm
Number of Switch		4
Number of Pin		8
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg
